10" Intelligent Surface Touch Panel - Black
10" Intelligent Surface Touch Panel - Black
Couldn't load pickup availability

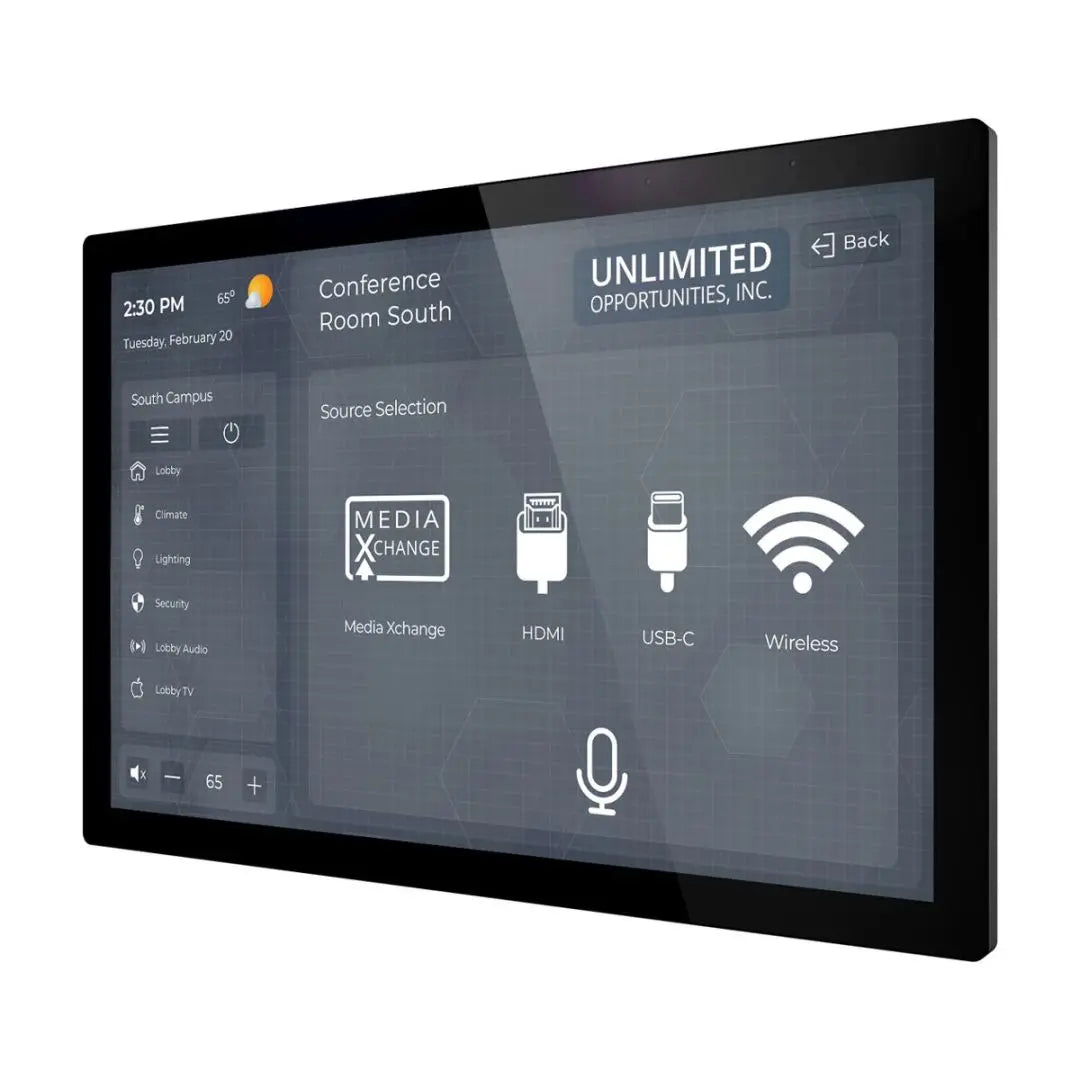

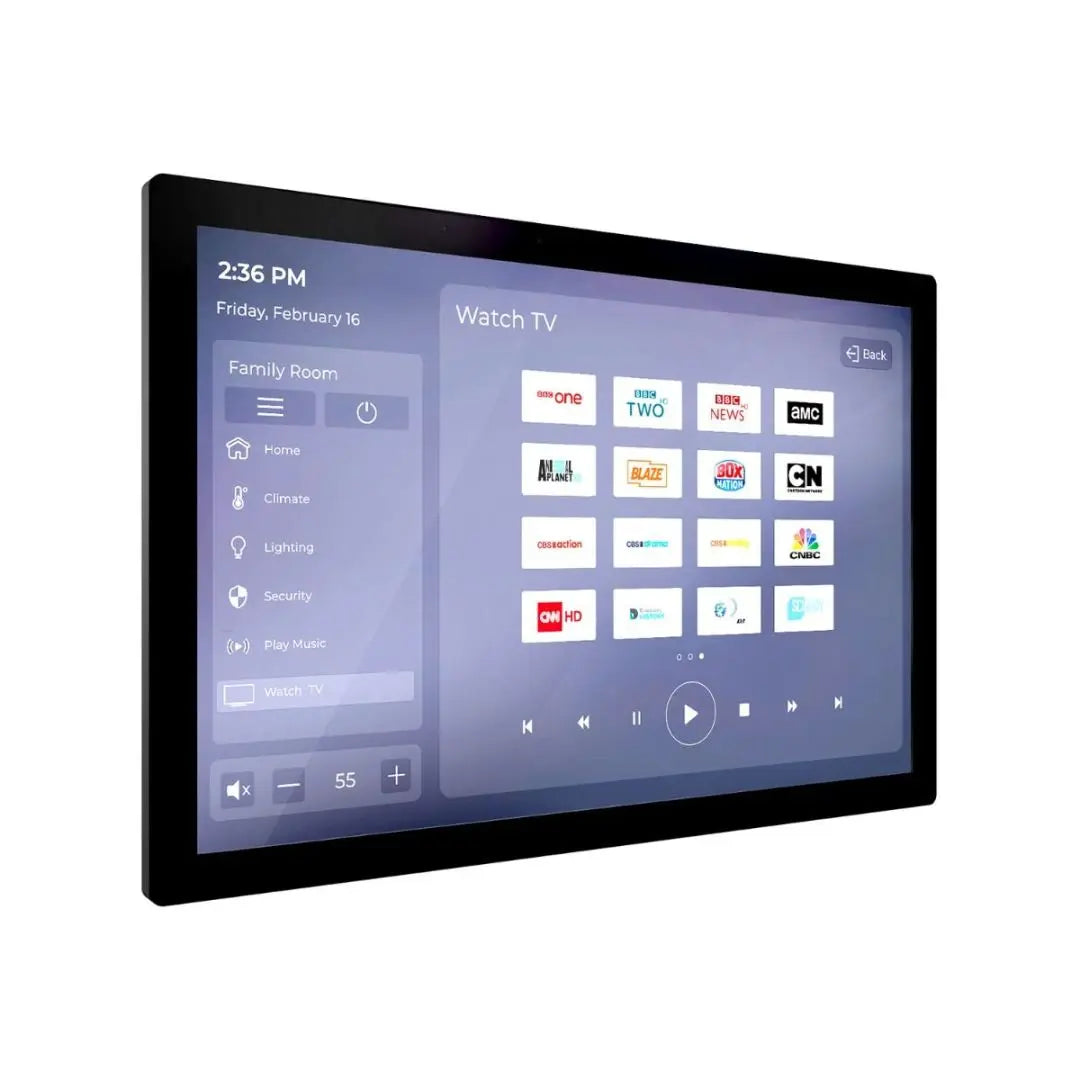

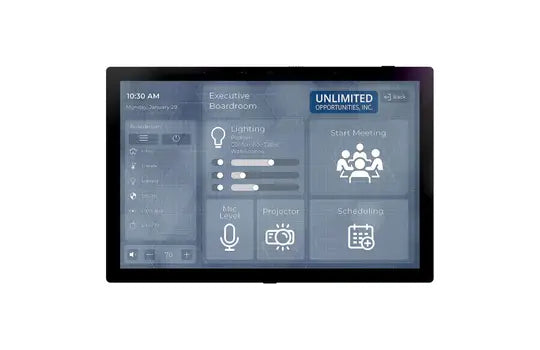

The new IST-10 touchpanel elevates system control in all commercial and residential settings. It starts with a hi-resolution 10” capacitive-touch screen with a 1920x1200 resolution with true-black display filter for exceptional clarity. With an ultra-thin bezel and a near-flush mount (just 0.4" / 12mm off the wall), the IST-10 makes an elegant statement in landscape or portrait mount, while the optional stand enables tabletop and countertop convenience. Built-in Ethernet with PoE enables seamless two-way system control, video, and remote programming.
The hi-res display is ideal for the 100% customizable RTI user interface, with fast response and easy swiping. The proximity sensor enables a fast hands-free wake while the ambient light sensors automatically adjust display brightness. With elevated processing power and enhanced memory, the IST-10 plays hi-resolution video in H.264 or H.265 format and is ideal for viewing security camera feeds. Dual speakers, far-field microphone array, SIP-readiness, plus full duplex capability make the IST-10 perfect for intercom and as an interface with video doorbells. The hi-res 2MP camera can double as a surveillance source, while its manual shutter ensures privacy. The 2-mic array features a mute button plus hardware-based echo cancellation.
With its included mounting bracket, the IST-10 mounts easily in a US single gang or double gang box and is compatible with standard wall boxes in most countries.
Included in the box:
IST-10, metal wall bracket (1), mounting bracket screws (4)
The table stand is sold separately.
Features
- Hi-resolution 10” capacitive-touch screen (1920x1200) with ultra-thin bezel.
- Near-flush mount (less than 0.4”/12mm off wall).
- Ethernet and Wi-Fi options for control and communication.
- PoE or 12V DC power options.
- Exceptional video streaming and two-way intercom at H.264 or H.265 format.
- Hi-res privacy ensured 2MP camera.
- Dual speakers and far-field microphone array (with mute button).
- Proximity and ambient light sensors.

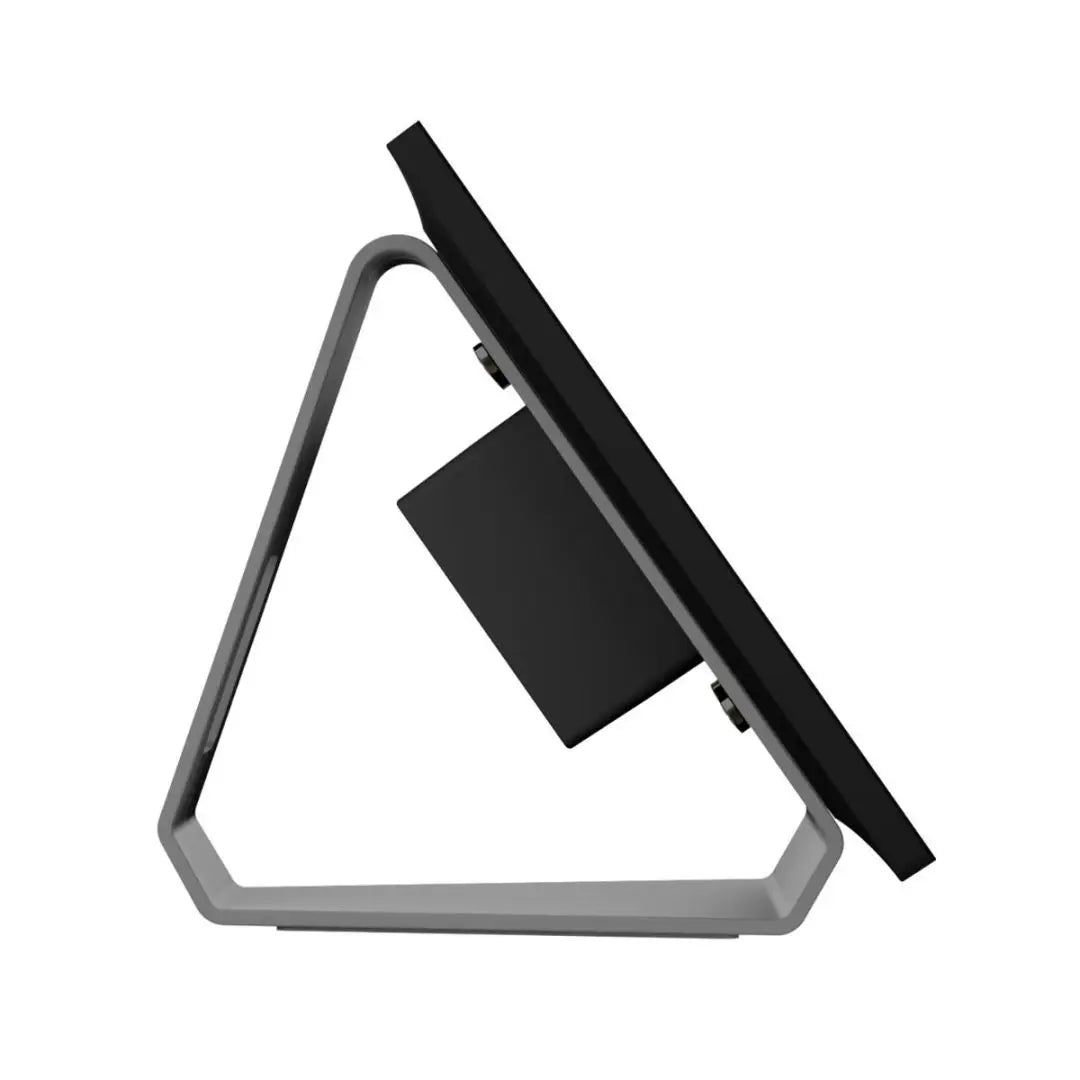

- Tabletop stand option.
- Portrait or landscape.
| Power (Power Supply not included) | +12VDC, 2A or PoE (802.3af) |
| Power Management | Adjustable backlight/ proximity sensor |
| Touchscreen Display | High-brightness color IPS LCD WUXGA (1920x1200 pixels) with true black display filter Integrated high-resolution capacitive-touch screen |
| Display Size | 10" (254mm) diagonal. 16:10 aspect ratio |
| Display Backlight | LED Backlit, 400nit |

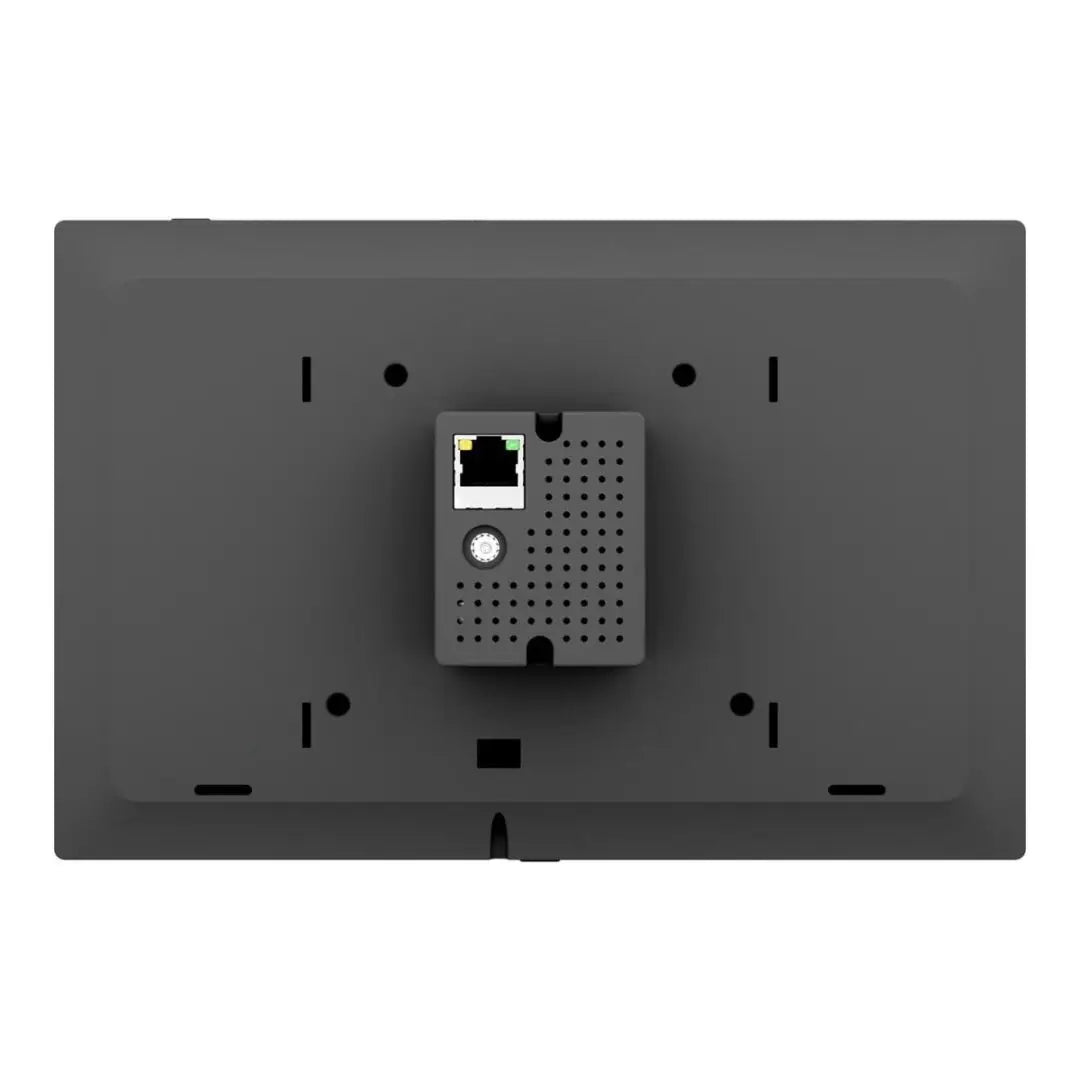

| Ethernet Port | RJ-45, 10/100 Base-T with Power-over-Ethernet |
| Camera | Color CMOS, 2MP |
| Microphone | Built-in digital microphone array Mute button, hardware-based echo cancellation |
| Speakers | Two (2), 8 Ohms, 1 Watt |
| Communications | Ethernet / Network IP WiFi 2.4G/5G 802.11a/b/g/n/ac |
| Total System Memory | 4GB RAM, 64GB ROM |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Total number of macros is limited only by memory |
| Operating Temperature | 0 to +50°C / +32 to +122°F |
| Operating Humidity | 5% to 95% Non-condensing |
| Mounting | Wall-Mount or optional table stand |
| Installation | US standard single gang or dual gang |
| Outer Bezel Dimension (WxH) | 9.39” x 6.24” x 0.43” 238.5 mm x 158.5 mm x 10.9mm |
| Wall Cut-Out Dimension (W x H) | 2.15” x 3.6” 54.7mm x 91.5mm |
| Depth in Wall (Wall Box) | 1.34" (34.0mm) |
