HDMI over 70m CAT6 Extender Set

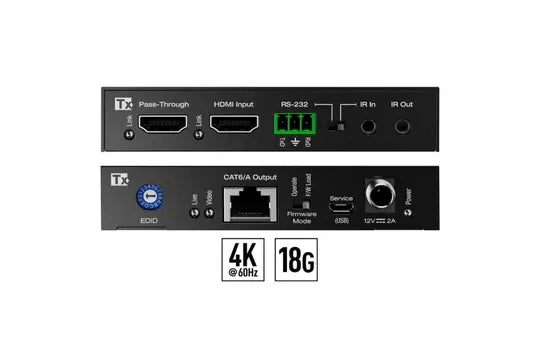

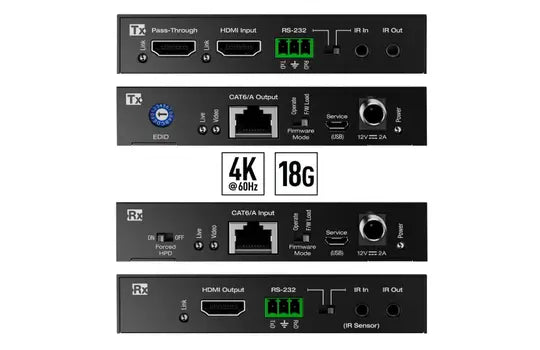

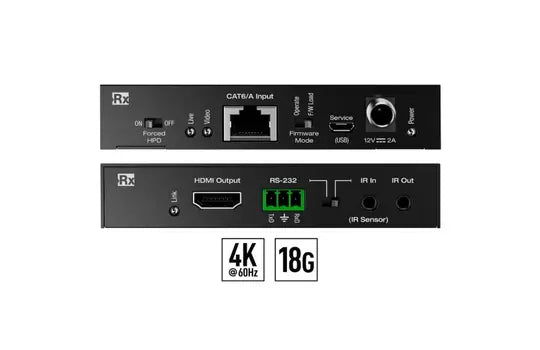

4K/UHD 18Gbps, HDCP2.2 compliant HDMI over CAT6 Transmitter plus Receiver set for extension of digital video signals with the latest standards in resolution, HDR, and Chroma over a single CAT cable. The Transmit unit features an HDMI pass-thru port for integration with local monitors or AV Receivers. In addition to HDMI AV, KD-X444LP carries IR or RS-232 for controlling remotely located equipment. An IR sensor and IR emitter are included, and the Tx unit’s IR Input port supports Serial IR input directly from a control system / IR block. With Power over CAT (PoC), only one power supply is needed, and it may be connected at either unit for ease of installation. KD-X444LP features Key Digital’s proprietary Full Buffer Technology software suite, with EDID handshake management, fixed hot plug detection, HDCP authentication to the connected source, and TMDS signal reclocking for installation with long cabling or many connectivity layers.

Features

• Single CAT5e/6 UTP/STP Extension: Fully automatic equalization, and amplification depending on cabling length
• 4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may power Tx
• Low Profile: Super slim chassis design
• Signal Extension: 4K/UHD (18G) up to 230ft / 70m with CAT5e/6, up to 328ft / 100m with CAT6A STP. 1080p up to 230 ft / 70m with CAT5e/6, up to 328ft / 100m with CAT6A STP
• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block
• Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
• RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
• Surround Audio Support: HDMI Pass-Thru supports Dolby, Dolby TrueHD, DTS and DTS-HD (formats up to 7.1); CAT6 Output supports Dolby, DTS (formats up to 5.1/6.1)
